Electric vehicles (EVs) are emerging as the preferred mode of transportation, offering a sustainable and environmentally friendly alternative to traditional combustion engine vehicles. Within the complex ecosystem of an EV, numerous ECUs play crucial roles in ensuring their efficient operation. Among the key ECUs in electric vehicles is the automotive MCU — the motor control unit — which acts as the brain behind the motor's performance. In this comprehensive article, we will explore the world of the automotive MCU, examining its functions, components, and the latest trends shaping the motor control unit for electric vehicle landscape.
Before delving into the intricacies of the motor control unit for electric vehicle, it is essential to understand the various types of motors commonly used in electric vehicles. The two most prevalent types are the Brushless DC (BLDC) motor and the Permanent Magnet Synchronous (PMS) motor.
The BLDC motor, also known as an electronically commutated motor, eliminates the need for brushes and commutators, resulting in improved efficiency and reduced maintenance. Essentially it has permanent magnets in the rotor and coil windings in the stator. By varying the electric current and its direction, the magnetic field produced by the stator drives the rotor with push/pull force. Both the speed and torque can be varied by changing the electric current through the coils. On the other hand, the PMS motor, also having permanent magnets in rotors, has coils wound in sinusoidal ways in the stator. Though the control mechanism is more complex, it offers higher power density ratio and overall performance.
BLDC and PMS motors dominate the market, with BLDC motors being favored in three-wheelers and PMS motors in two/four-wheelers. Additionally, a small percentage of electric vehicles in India employ induction motors.
The automotive MCU serves as the central control hub for the electric vehicle's motor, performing several vital functions to ensure smooth and efficient driving. Its primary responsibility is to convert the direct current (DC) supplied by the battery into a three-phase alternating current (AC) that drives the motor.
Furthermore, the automotive MCU monitors crucial parameters such as temperature, current, and voltage to optimize motor performance and prevent potential damage. It also controls the motor's speed, torque, and direction based on inputs from the driver or the vehicle's control system.
This section details the MCU architecture and describes a typical block diagram of a motor control unit for electric vehicle:
The microcontroller at the center of the MCU architecture is responsible for executing complex control algorithms and managing the overall operation of the motor. It also provides an external digital interface — mostly CAN — that allows it to communicate with other ECUs in the system and receive control information from the VCU. Gate drivers facilitate the control of power switches and are driven by dedicated driver controller peripherals or PWM channels. The power electronics enable the conversion between DC and AC power. Typically, a six-MOSFET configuration is used, with count increased to handle the current requirements of the motor. Various sensing circuits provide feedback on motor parameters such as position, phase currents, and temperature for precise control.
Like any embedded system, the software architecture of a motor control unit for electric vehicle follows a layered approach. The firmware consists of two major parts — motor control and communication. The motor control component monitors inputs from various sensors and drives the phase currents using complex mathematical functions. The communication part enables seamless control from external systems, allowing user interactions and customization of motor parameters such as speed and torque limits to suit different driving conditions and preferences.
It is crucial for the MCU architecture to conform to safety standards such as ISO 26262. Additionally, it should be a highly reliable design that effectively manages power dissipation without compromising performance or user experience.
While multiple methods exist for driving motors — such as Trapezoidal control and Sinusoidal control — the Field Oriented Control (FOC) based drive has gained widespread adoption. Initially developed for AC motors, FOC optimizes the torque delivered by the motor by maximizing the quadrature component. When the magnetic fluxes from both the stator and rotor interact, a force is generated in the form of a vector with two components — d and q. The d component, perpendicular to the rotor axis, relates to the flux component, while the q component represents torque. FOC allows for precise control of motor torque and speed by accurately determining the current position of the rotor and using complex mathematical equations to align the motor's magnetic field appropriately. Although this technique requires faster and higher processing power, FOC enhances motor efficiency, reduces energy losses, and improves overall system performance.
Power electronics play a vital role in automotive MCUs, enabling the conversion and control of electrical power. Low voltage motors, typically below 100 V, employ MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). In contrast, higher voltage motors utilize Gallium Nitride (GaN) power switches and Silicon Carbide (SiC)/Insulated Gate Bipolar Transistor (IGBT) drives.
GaN power switches offer advantages such as higher switching speeds, lower power losses, and improved thermal performance compared to traditional silicon-based switches. This results in more efficient motor control units with reduced energy consumption and increased power density.
SiC and IGBT drives provide higher operating temperatures and voltage capabilities, enhancing performance and reliability in demanding electric vehicle applications. These advanced power electronics technologies contribute to the optimization of the automotive MCU, enhancing the overall efficiency and performance of electric vehicles.
Regenerative braking is a significant feature in electric vehicles that allows the motor control unit for electric vehicle to harness and recover energy during deceleration and braking. Instead of dissipating kinetic energy as heat, regenerative braking converts it back into electrical energy, which is then stored in the vehicle's battery. This process requires sophisticated electronics and software mechanisms to effectively leverage the back electromotive force (EMF) generated.
By employing regenerative braking, automotive MCUs can significantly enhance the efficiency and range of electric vehicles. This technology not only reduces energy wastage but also improves the overall driving experience by providing smoother and more controlled braking.
Among the many ECUs in electric vehicles — including the BMS, VCU, and OBC — the automotive MCU is unique in its real-time, high-frequency control demands. Coordinating with the BMS for power limits and the VCU for torque requests, the MCU must respond within microseconds, making its architecture and firmware quality mission-critical.
The adoption of multi-motor electric vehicles is on the rise, driven by the desire for enhanced performance and efficiency. These vehicles utilize multiple automotive MCU units to drive individual wheels or subsystems, allowing for advanced torque vectoring and precise control of each wheel.
However, the implementation of multi-motor electric vehicles requires complex and costlier designs, as the motor control units associated with them must be capable of managing power distribution, torque allocation, and coordination between the motors. These control units utilize advanced algorithms and communication protocols to ensure seamless integration and synchronized operation.
Electric vehicle embedded controller design for the MCU involves careful selection of the microcontroller, gate driver ICs, and power stage, followed by rigorous hardware validation. Signal integrity, EMC compliance, and thermal management are all critical factors in realizing a production-ready automotive MCU platform.
The electric vehicle industry is constantly evolving, and the automotive MCU continues to undergo significant advancements. One emerging trend is the development of motor control units capable of controlling multiple motors simultaneously. Additionally, there is a standardization of voltage levels, with more OEMs moving towards 48 V. The shift towards zonal architecture is also expected to bring major changes to MCU architecture and its positioning. Significant improvements are being seen in the power electronics side with tight integration and better efficiency.
As electric vehicles gain popularity, the role of the automotive MCU in revolutionizing their performance becomes increasingly critical. The motor control unit for electric vehicle serves as the driving force behind the EV's motor, ensuring optimal performance and efficiency. With constant advancements in MCU architecture and technology, the future promises even more efficient, powerful, and sustainable electric vehicles.
Embien's cross-domain embedded expertise spans motor control, battery management, and vehicle networking — enabling us to deliver motor control units for electric vehicles in different power categories at attractive value propositions. For hardware-level support including power stage design, visit our PCB layout design services.
Embien delivers production-ready automotive MCU solutions — from motor control unit for electric vehicle architecture to full embedded software development.
End-to-end electronics product development services covering automotive MCU hardware design, embedded firmware, and functional safety compliance for EVs.

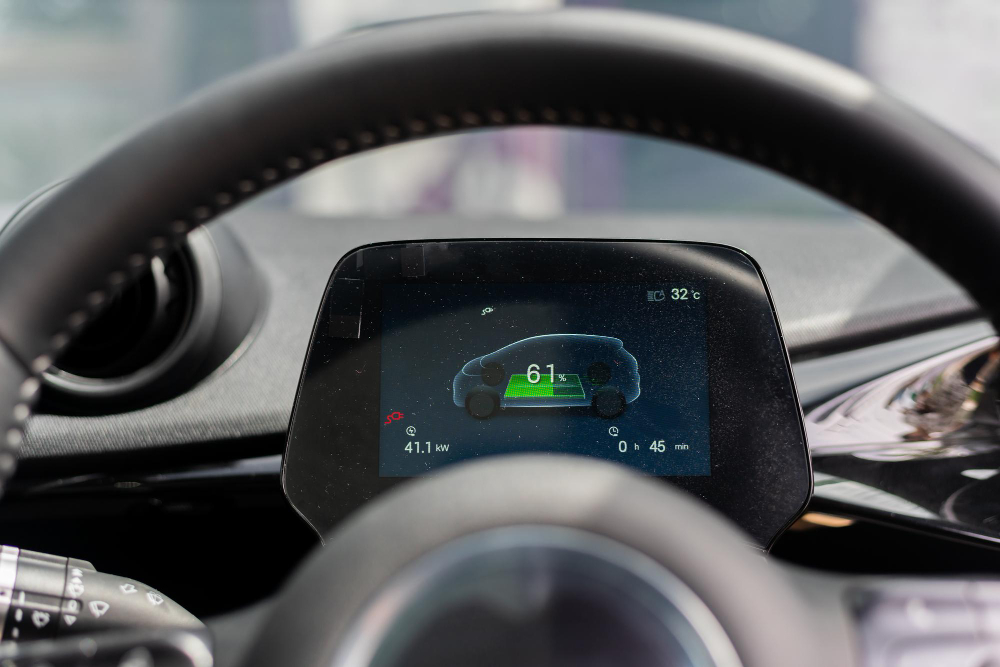

A case study on EV instrument cluster development — illustrating Embien's expertise in electric vehicle embedded controller design across multiple ECUs.
