In the telematics architecture the most critical element in the entire chain is the Telematics Control Unit (TCU). The TCU is a powerful device that integrates advanced hardware and software systems to enable seamless communication and data exchange between vehicles and the outside world. This article serves as a comprehensive introduction to the Telematics Control Unit, shedding light on its functionality, TCU hardware architecture, major components, design considerations, and its evolution over time.
The Telematics Control Unit acts as the critical internal and external bridging interface in modern vehicles, enabling a wide range of functionalities that enhance safety, efficiency, and connectivity. Its primary function is to collect, process, and transmit data between the vehicle and external systems, such as fleet management platforms, cloud-based services, and mobile applications. The TCU enables features like remote vehicle diagnostics, over-the-air software updates, real-time tracking, emergency services, and even advanced driver assistance systems.
Additionally, the Telematics Control Unit facilitates seamless connectivity through various communication protocols, including cellular networks like 4G LTE and upcoming 5G, as well as Wi-Fi and Bluetooth. This enables vehicles to stay connected to the internet, allowing for services like remote vehicle monitoring, remote control, and integration with smart home systems. The TCU also plays a crucial role in enabling vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) communication, paving the way for future technologies like autonomous driving and smart traffic management.
Telematics technology has evolved significantly over the years, keeping pace with advancements in technology and the ever-changing demands of the automotive industry. Initially, TCUs were primarily used only for basic functionalities like vehicle tracking and emergency services. However, with the advent of cellular networks and the internet, the capabilities of TCUs expanded exponentially.
The introduction of 4G LTE and upcoming 5G networks enabled faster and more reliable connectivity, paving the way for advanced features like over-the-air software updates, real-time diagnostics, and cloud-based services. These advancements also facilitated the integration of TCUs with other emerging technologies, such as artificial intelligence, machine learning, and big data analytics. This integration allowed for more accurate vehicle diagnostics, predictive maintenance, and personalized services tailored to individual drivers.
Another significant evolution in telematics technology is the shift towards connected ecosystems and smart cities. TCUs now play a crucial role in enabling vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) communication, contributing to the development of autonomous driving systems and intelligent transportation networks. Through V2V and V2I communication, vehicles can share real-time data with each other and traffic management systems, enabling efficient traffic flow, reducing congestion, and enhancing overall road safety.
With respect to the functionality integration, modern TCU has more than one vehicle network interface and acts as an IVN gateway. It can also update firmware of different ECUs as and when needed. In this case, the TCU is called a TGU — Telematics Gateway Unit.
The TCU hardware architecture is captured in the below diagram.
As can be seen, at the heart of the TCU hardware architecture lies the main processing element which is typically a Microcontroller Unit (MCU) or system-on-a-chip (SoC). The MCU is responsible for executing various software algorithms, managing data storage, and communicating with other components.
It also incorporates necessary memory devices both volatile and non-volatile. The SRAM or SDRAM is used to store data and pre-process. Flash is typically used to store the data as the TCU needs to employ a store-and-forward mechanism, considering that the server connectivity may not always be available. EEPROM or the same Flash is used to store various configuration data.
On the vehicle-facing side, the TCU hardware architecture can have one or more wired interfaces. The most common and hence mandatory is the CAN interface. As most of the information flowing on the In-Vehicle Network is over CAN as messages and signals, the Telematics Control Unit collects this data and sends it to the cloud. Another upcoming interface now being used is Automotive Ethernet, running protocols such as SOME/IP or DoIP. Apart from this, other interfaces like LIN and FlexRay could be supported.
On the external connectivity front, the TCU could incorporate one or more of Bluetooth, Wi-Fi and a Cellular Modem. The Cellular modem is the most common interface, with 2G, 3G, 4G or 5G supported based on the generation of the device. Many recent models support onboard eSIM rather than a regular SIM. While Bluetooth and Wi-Fi are typically used for configuration and updates, some models leverage them for telematics server connectivity. Based on this wireless connectivity, the antenna design and placement has to be done to optimize signal strength and reception, enabling reliable communication in various scenarios.
The TCU hardware architecture also incorporates a Global Navigation Satellite System (GNSS) receiver, such as GPS or GLONASS, for accurate positioning and navigation. The TCU also includes various sensors, such as accelerometers, gyroscopes, and magnetometers, which provide essential data for vehicle tracking, motion detection, and advanced driver assistance systems.
Apart from these, the Telematics Control Unit collects information from various sensors in the automobile from multiple ECUs via the CAN bus. Based on the capability, the TCU can perform sensor fusion and create a more accurate estimate of vehicle parameters.
The TCU hardware architecture ultimately serves one critical purpose: delivering clean, reliable data to telematics dashboards for visualization and action. The processed vehicle data — speed, location, fuel level, driver events — flows from the Telematics Control Unit through cellular networks to the telematics server, where it is rendered on telematics dashboards accessible via web browsers and mobile apps. The quality of telematics dashboards is directly dependent on the data fidelity achieved by the TCU hardware architecture: signal filtering, sensor fusion, and store-and-forward buffering all contribute to the accuracy and timeliness of dashboard data.
The telematics PCB is the physical realization of the TCU hardware architecture — integrating the SoC, modem, GNSS receiver, and vehicle interface transceivers onto a compact, automotive-grade circuit board. A well-designed telematics PCB must pass AEC-Q100 component qualification, meet CISPR 25 EMI requirements, and operate across the −40°C to +85°C automotive temperature range. Embien's edge computing services include full-cycle telematics PCB design, from schematic capture through hardware bring-up and environmental validation.
End-to-end automotive telematics unit development services cover hardware schematic design, telematics PCB layout, BSP bring-up, protocol stack integration, and regulatory certification — all within a single engagement. Partnering with an experienced provider of automotive telematics unit development services ensures that the TCU hardware architecture meets both OEM functional requirements and regional homologation standards. Our cloud infrastructure services complement automotive telematics unit development services by provisioning the scalable backend that receives, stores, and processes the data generated by production TCU fleets.
During the design of the Telematics Control Unit, care should be taken to pay special attention to the TCU hardware architecture as it is the foundation of the overall TCU system. With a solid understanding of the evolution of telematics technology, TCU functionality, major components, connectivity, and the role played in populating telematics dashboards, engineers can approach TCU hardware architecture design with confidence. The next logical step is to explore the software architecture of the TCU, which builds upon the hardware foundation covered in this article.
Embien's cross-domain embedded engineering services cover the full TCU hardware architecture lifecycle — from telematics PCB design and GNSS integration to CAN/Ethernet protocol stacks and automotive telematics unit development services.
Embien's cloud development services provide the scalable backend behind telematics dashboards — handling real-time data ingestion from fleets of TCUs, analytics processing, and secure OTA management for connected vehicle programs.

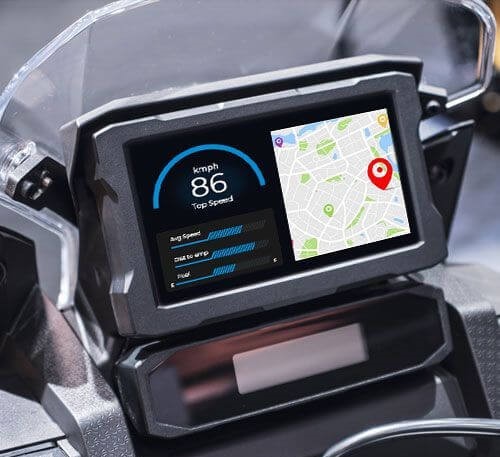

A case study on developing an integrated connectivity cluster with mobile application support — showcasing Embien's expertise in TCU hardware architecture, in-vehicle network integration, and telematics dashboards connectivity.
