SOME/IP Server Demo
There is an example implementation of SOME/IP server demo available in apps folder. SOME/IP server is in waiting condition for UDP socket connection .Once connected SOME/IP server is ready to send the response to the client.
The below diagram captures the high level flow of client and server of SOME/IP.
Service Discovery Process
Notification Process
In this implementation, a model ECU is created to mimic various features that hold vehicle information like speed, RPM, door state, and gear state. Based on the SOME/IP protocol, if any event group is subscribed to by a client, the notification events will be sent while fields are updated in the corresponding event group, and data will be read and written on particular events(under subscribed eventgroup) with the below-mentioned event IDs.
Service ID |
Instance ID |
Eventgroup ID |
Event ID |
Size |
Read/Write |
Description |
|---|---|---|---|---|---|---|
0x1234 |
0x5678 |
0x4425 |
0x8001 |
1 Byte |
Read Write |
Wheel slip status |
0x1234 |
0x5678 |
0x4425 |
0x8002 |
2 Byte |
Read Write |
Speed data |
0x1234 |
0x5678 |
0x4425 |
0X8003 |
4 Byte |
Read Write |
RPM data |
0x1234 |
0x5678 |
0x4426 |
0x8004 |
1 Byte |
Read Write |
Engine state |
0x1234 |
0x5678 |
0x4426 |
0x8005 |
2 Byte |
Read Write |
Steering data |
0x1234 |
0x5678 |
0x4426 |
0x8006 |
4 Byte |
Read Write |
YAW rate |
0x1234 |
0x5699 |
0x4425 |
0x8007 |
One Dimensional Array |
Read Write |
Peak voltage current |
0x1234 |
0x5699 |
0x4425 |
0x8008 |
One Dimensional Array |
Read Write |
State of charge and state of health |
0x1234 |
0x5699 |
0x4426 |
0x8009 |
Multi Dimensional Array |
Read Write |
Battery heat grid |
0x1235 |
0x5679 |
0x4425 |
0x800A |
One Dimensional Array |
Read Write |
OTA status message |
0x1235 |
0x5679 |
0x4425 |
0x800B |
One Dimensional Array |
Read Write |
OTA error message |
0x1234 |
0x5678 |
0x4425 |
0x800C |
structure |
Read Write |
Vehicle position event |
0x1235 |
0x5678 |
0x4425 |
0x800D |
structure(union) |
Read Write |
diag_payload_data_1 |
0x1235 |
0x5678 |
0x4425 |
0x800E |
structure(union) |
Read Write |
diag_payload_data_2 |
0x1001 |
0x2001 |
0x4422 |
0x800F |
1 Byte |
Read Write |
Front right door state event |
0x1001 |
0x2002 |
0x4423 |
0x8010 |
1 Byte |
Read Write |
Front left door state event |
0x1001 |
0x2003 |
0x4424 |
0x8011 |
1 Byte |
Read Write |
Rear right door state event |
0x1001 |
0x2004 |
0x4425 |
0x8012 |
1 Byte |
Read Write |
Rear left door state event |
0x1002 |
0x2005 |
0x4427 |
0x8013 |
Structure |
Read Write |
Front right tyre state |
0x1002 |
0x2005 |
0x4427 |
0x8014 |
Structure |
Read Write |
Front left tyre state |
0x1002 |
0x2005 |
0x4428 |
0x8015 |
Structure |
Read Write |
Rear right tyre state |
0x1002 |
0x2005 |
0x4428 |
0x8016 |
Structure |
Read Write |
Rear left tyre state |
0x1003 |
0x2006 |
0x4425 |
0x8017 |
2 Bytes |
Read Write |
ambient light state |
0x1004 |
0x2007 |
0x4425 |
0x8018 |
Structure |
Read Write |
Brake pedal state |
0x1005 |
0x2008 |
0x4430 |
0x8019 |
1 Byte |
Read Write |
Fuel level monitor state |
0x1006 |
0x2009 |
0x4425 |
0x8020 |
One Dimensional Array |
Read Write |
Rain sensor state |
0x1007 |
0x2010 |
0x4431 |
0x8021 |
Structure |
Read Write |
AC monitor event |
Server Service Details Information
Service ID |
Instance ID |
TTL |
Major Ver |
Minor Ver |
Port |
IP Ver |
Proto Type |
|---|---|---|---|---|---|---|---|
0x1234 |
0x5678 |
15 |
1 |
0 |
30510 |
IPV4/IPV6 |
UDP |
0x1234 |
0x5699 |
20 |
2 |
5 |
30511 |
IPV4/IPV6 |
UDP |
0x1235 |
0x5679 |
30 |
1 |
5 |
30510 |
IPV4/IPV6 |
UDP |
0x1234 |
0x5678 |
45 |
4 |
4 |
30510 |
IPV4/IPV6 |
TCP |
0x1235 |
0x5678 |
15 |
1 |
2 |
30512 |
IPV4/IPV6 |
TCP |
0x1001 |
0x2001 |
25 |
1 |
0 |
30500 |
IPV4/IPV6 |
UDP |
0x1001 |
0x2002 |
10 |
1 |
1 |
30501 |
IPV4/IPV6 |
UDP |
0x1001 |
0x2003 |
15 |
1 |
2 |
30502 |
IPV4/IPV6 |
UDP |
0x1001 |
0x2004 |
20 |
1 |
3 |
30503 |
IPV4/IPV6 |
UDP |
0x1002 |
0x2005 |
15 |
1 |
0 |
30504 |
IPV4/IPV6 |
TCP |
0x1003 |
0x2006 |
20 |
1 |
0 |
30510 |
IPV4/IPV6 |
UDP |
0x1004 |
0x2007 |
25 |
1 |
0 |
30510 |
IPV4/IPV6 |
UDP |
0x1005 |
0x2008 |
30 |
1 |
0 |
30507 |
IPV4/IPV6 |
TCP |
0x1006 |
0x2009 |
20 |
1 |
0 |
30510 |
IPV4/IPV6 |
UDP |
0x1007 |
0x2010 |
25 |
1 |
0 |
30510 |
IPV4/IPV6 |
TCP |
Server Eventgroup Details Information
Service ID |
Instance ID |
Eventgroup |
Multicast Port |
Multicast IPV4 Addr |
Multicast IPV6 Addr |
|---|---|---|---|---|---|
0x1234 |
0x5678 |
0x4425 |
35689 |
“224.0.10.5” |
“FF05:0000:0000:0000:0000:0000:1235:1236” |
0x1234 |
0x5678 |
0x4426 |
0 |
0 |
0 |
0x1234 |
0x5699 |
0x4425 |
35670 |
“224.25.36.15” |
“FF05:0000:0000:0000:1237:0000:7777:5000” |
0x1234 |
0x5699 |
0x4426 |
35690-IPV6 and 35689-IPV4 |
“224.0.10.5” |
“FF05:0000:0000:0000:1237:0000:8000:2000” |
0x1235 |
0x5679 |
0x4425 |
0 |
0 |
0 |
0x1234 |
0x5678 |
0x4425 |
0 |
0 |
0 |
0x1235 |
0x5678 |
0x4425 |
0 |
0 |
0 |
0x1001 |
0x2001 |
0x4422 |
0 |
0 |
0 |
0x1001 |
0x2002 |
0x4423 |
0 |
0 |
0 |
0x1001 |
0x2003 |
0x4424 |
0 |
0 |
0 |
0x1001 |
0x2004 |
0x4425 |
0 |
0 |
0 |
0x1002 |
0x2005 |
0x4427 |
0 |
0 |
0 |
0x1002 |
0x2005 |
0x4428 |
0 |
0 |
0 |
0x1003 |
0x2006 |
0x4425 |
35690 - IPV6 and 35670 - IPV4 |
“224.25.36.15” |
“FF05:0000:0000:0000:1237:0000:8000:2000” |
0x1004 |
0x2007 |
0x4425 |
35690 - IPV6 and 35670 - IPV4 |
“224.25.36.15” |
“FF05:0000:0000:0000:1237:0000:8000:2000” |
0x1005 |
0x2008 |
0x4430 |
0 |
0 |
0 |
0x1006 |
0x2009 |
0x4425 |
0 |
0 |
0 |
0x1007 |
0x2010 |
0x4431 |
0 |
0 |
0 |
Server Event Information
Service ID |
Instance ID |
Major Version |
Eventgroup ID |
Event ID |
|---|---|---|---|---|
0x1234 |
0x5678 |
1 |
0x4425 |
0x8001 |
0x1234 |
0x5678 |
1 |
0x4425 |
0x8002 |
0x1234 |
0x5678 |
1 |
0x4425 |
0x8003 |
0x1234 |
0x5678 |
1 |
0x4426 |
0x8004 |
0x1234 |
0x5678 |
1 |
0x4426 |
0x8005 |
0x1234 |
0x5678 |
1 |
0x4426 |
0x8006 |
0x1234 |
0x5699 |
2 |
0x4425 |
0x8007 |
0x1234 |
0x5699 |
2 |
0x4425 |
0x8008 |
0x1234 |
0x5699 |
2 |
0x4426 |
0x8009 |
0x1235 |
0x5679 |
1 |
0x4425 |
0x800A |
0x1235 |
0x5679 |
1 |
0x4425 |
0x800B |
0x1234 |
0x5678 |
4 |
0x4425 |
0x800C |
0x1235 |
0x5678 |
1 |
0x4425 |
0x800D |
0x1235 |
0x5678 |
1 |
0x4425 |
0x800E |
0x1001 |
0x2001 |
1 |
0x4422 |
0x800F |
0x1001 |
0x2002 |
1 |
0x4423 |
0x8010 |
0x1001 |
0x2003 |
1 |
0x4424 |
0x8011 |
0x1001 |
0x2004 |
1 |
0x4425 |
0x8012 |
0x1002 |
0x2005 |
1 |
0x4427 |
0x8013 |
0x1002 |
0x2005 |
1 |
0x4427 |
0x8014 |
0x1002 |
0x2005 |
1 |
0x4428 |
0x8015 |
0x1002 |
0x2005 |
1 |
0x4428 |
0x8016 |
0x1003 |
0x2006 |
1 |
0x4425 |
0x8017 |
0x1004 |
0x2007 |
1 |
0x4425 |
0x8018 |
0x1005 |
0x2008 |
1 |
0x4430 |
0x8019 |
0x1006 |
0x2009 |
1 |
0x4425 |
0x8020 |
0x1007 |
0x2010 |
1 |
0x4431 |
0x8021 |
Server Event Data Information
Event ID |
User Data Type |
Description |
|---|---|---|
0x8001 |
uint8 |
Wheel Slip Status |
0x8002 |
uint16 |
Speed Data |
0x8003 |
uint32 |
RPM Data |
0x8004 |
int8 |
Engine State |
0x8005 |
int16 |
Steering Data |
0x8006 |
int32 |
Yaw rate |
0x8007 |
One Dimensional Array |
Peak Vol Current |
0x8008 |
One Dimensional Array |
State of charge and state of health |
0x8009 |
Multi Dimensional Array |
Battery Heat Grid |
0x800A |
One Dimensional Array |
ota status message |
0x800B |
One Dimensional Array |
ota error message |
0x800C |
Structure (float …, float .., uint32_t .., uint32_t …) |
Vehicle Pos Event data (latitude, longitude, speed, heading_direction) |
0x800D |
union (uint8_t, uint16_t, uint32_t) |
Diag Payload Data 1 (status_flags, error_type, fault_code) |
0x800E |
union (uint8_t, uint16_t, uint32_t) |
Diag Payload Data 2 (status_flags, error_type, fault_code) |
0x800F |
uint8 |
Front right door state event |
0x8010 |
uint8 |
Front left door state event |
0x8011 |
uint8 |
Rear right door state event |
0x8012 |
uint8 |
Rear left door state event |
0x8013 |
Structure (float) |
Front right tyre state (tyre_temp_c, tyre_pressure_kPa) |
0x8014 |
Structure (float) |
Front left tyre state (tyre_temp_c, tyre_pressure_kPa) |
0x8015 |
Structure (float) |
Rear right tyre state (tyre_temp_c, tyre_pressure_kPa) |
0x8016 |
Structure (float) |
Rear left tyre state (tyre_temp_c, tyre_pressure_kPa) |
0x8017 |
uint16 |
ambient light state |
0x8018 |
Structure (uint8_t.., uint16_t) |
Brake pedal state (pedal_position, pressure_kPa) |
0x8019 |
uint8 |
Fuel level monitor state |
0x8020 |
One Dimensional Array |
Rain sensor state |
0x8021 |
Structure (uint8_t.., int8_t..,) |
AC monitor event (ac_power_state, ac_temperature_set, ac_fan_speed_level, ac_mode) |
Read data by Method ID services:
Event ID |
Method ID |
|---|---|
0x8001 |
101 |
0x8002 |
102 |
0x8003 |
103 |
0x8004 |
104 |
0x8005 |
105 |
0x8006 |
106 |
0x8007 |
107 |
0x8008 |
108 |
0x8009 |
109 |
0x800A |
10A |
0x800B |
10B |
0x800C |
10C |
0x800D |
10D |
0x800E |
10E |
0x800F |
10F |
0x8010 |
110 |
0x8011 |
111 |
0x8012 |
112 |
0x8013 |
113 |
0x8014 |
114 |
0x8015 |
115 |
0x8016 |
116 |
0x8017 |
117 |
0x8018 |
118 |
0x8019 |
119 |
0x8020 |
120 |
0x8021 |
121 |
Write data by Method ID services:
Event ID |
Method ID |
|---|---|
0x8001 |
01 |
0x8002 |
02 |
0x8003 |
03 |
0x8004 |
04 |
0x8005 |
05 |
0x8006 |
06 |
0x8007 |
07 |
0x8008 |
08 |
0x8009 |
09 |
0x800A |
0A |
0x800B |
0B |
0x800C |
0C |
0x800D |
0D |
0x800E |
0E |
0x800F |
0F |
0x8010 |
10 |
0x8011 |
11 |
0x8012 |
12 |
0x8013 |
13 |
0x8014 |
14 |
0x8015 |
15 |
0x8016 |
16 |
0x8017 |
17 |
0x8018 |
18 |
0x8019 |
19 |
0x8020 |
20 |
0x8021 |
21 |
SOME/IP Server Running Example
Refer to the Supported Platforms page to setup your environmental setup and follow further.

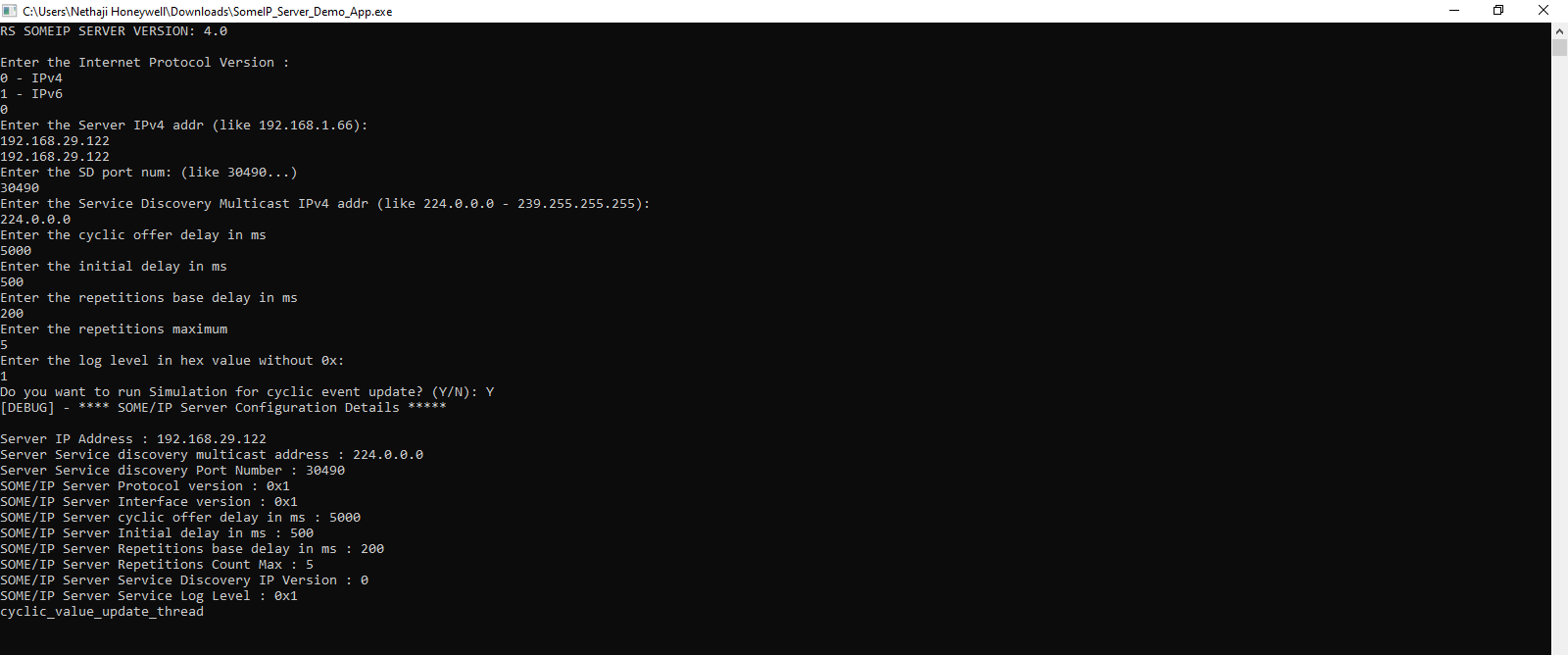

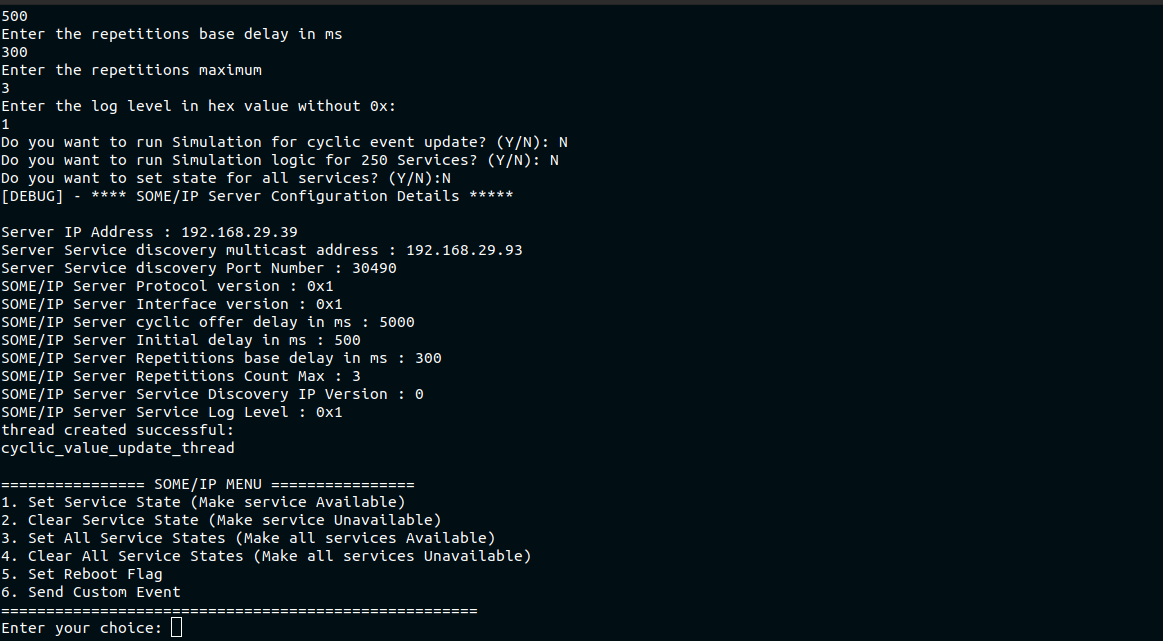

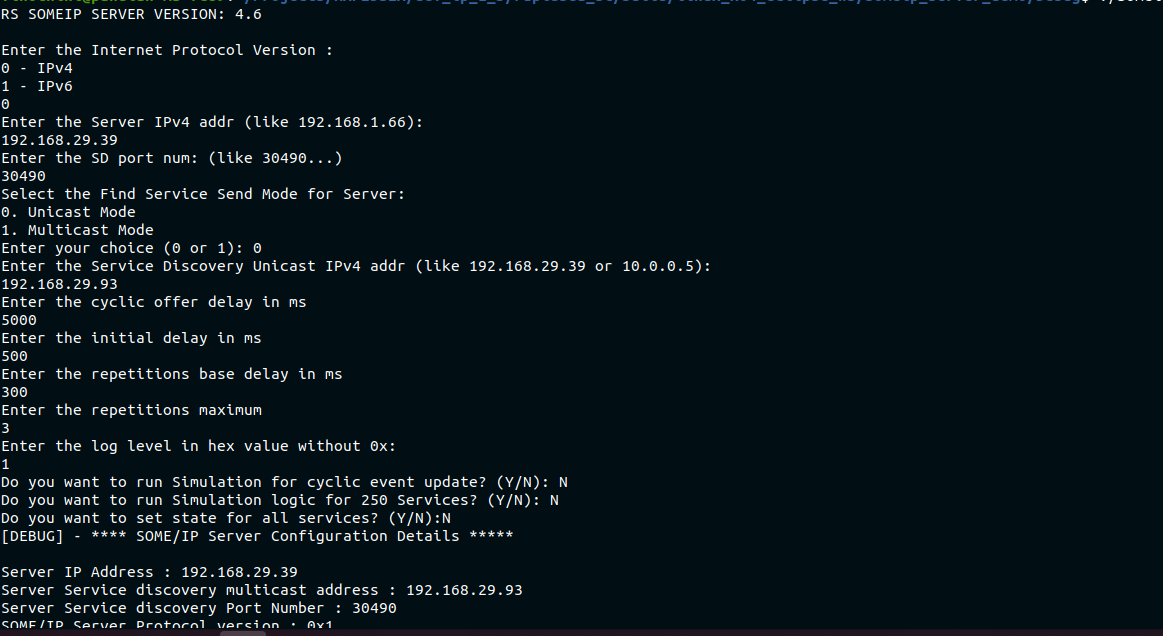

User Configuration for Server (IPV4)
Socket configuration |
Value |
|---|---|
SOME/IP Protocol Version |
0 - IPV4 |
SOME/IP server IP address |
IP address of server running PC or machine |
SOME/IP SD Port |
30490 |
SOME/IP server Port number |
30509 |
SOME/IP Service Discovery Multicast Addr(224.0.0.0 - 239.255.255.255) |
224.0.0.0 |
SOME/IP server cyclic offer delay (ms) |
5000 |
SOME/IP server initial delay (ms) |
500 |
SOME/IP server repetition base delay (ms) |
200 |
SOME/IP server repetitions maximum |
5 |
SOME/IP server log level in hex without(0x) |
1 |
SOME/IP serer run for cyclic event update |
|
After project successfully built, someip_server_demo binary generated.
Open the terminal in the above folder and run the below command
Windows (IPV4)
User Configuration for Server (IPV6)
Socket configuration |
Value |
|---|---|
SOME/IP Protocol Version |
1 - IPV6 |
SOME/IP server IP address |
IP address of server running PC or machine |
SOME/IP SD Port |
30490 |
SOME/IP server Port number |
30509 |
SOME/IP Service Discovery Multicast Addr(FF00:0000:0000:0000:0000:0000:0000 - FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF) |
FF05:0000:0000:0000:0000:0000:0011 |
SOME/IP server cyclic offer delay (ms) |
5000 |
SOME/IP server initial delay (ms) |
500 |
SOME/IP server repetition base delay (ms) |
200 |
SOME/IP server repetitions maximum |
5 |
SOME/IP server log level in hex without(0x) |
1 |
SOME/IP serer run for cyclic event update |
|
Note: The log level uses individual bits to enable or disable specific log categories. Each log type corresponds to a bit position (RS_LOG_ERR → bit 0, RS_LOG_INFO → bit 1, RS_LOG_DEBUG → bit 2, RS_LOG_RX → bit 3, RS_LOG_TX → bit 4).
For example, log level = 1D (binary 11101) means that the 0th, 2nd, 3rd, and 4th bits are set, so ERR, DEBUG, RX, and TX logs are enabled, while the INFO log (bit 1) is disabled.
After project successfully built, someip_server_demo binary generated.
Open the terminal in the above folder and run the below command

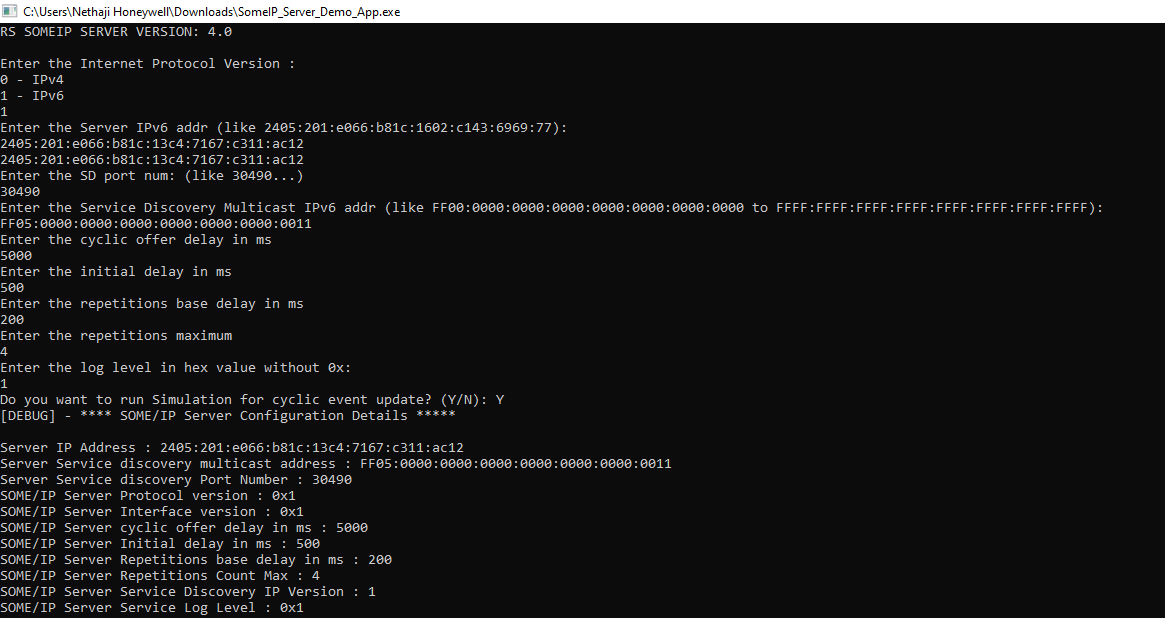

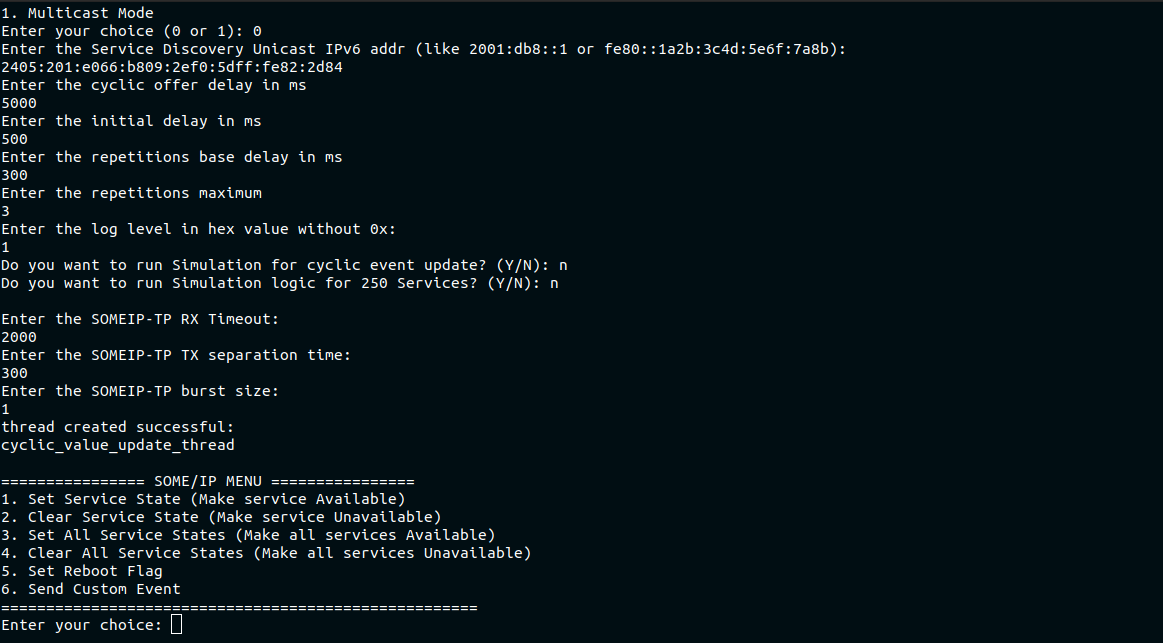

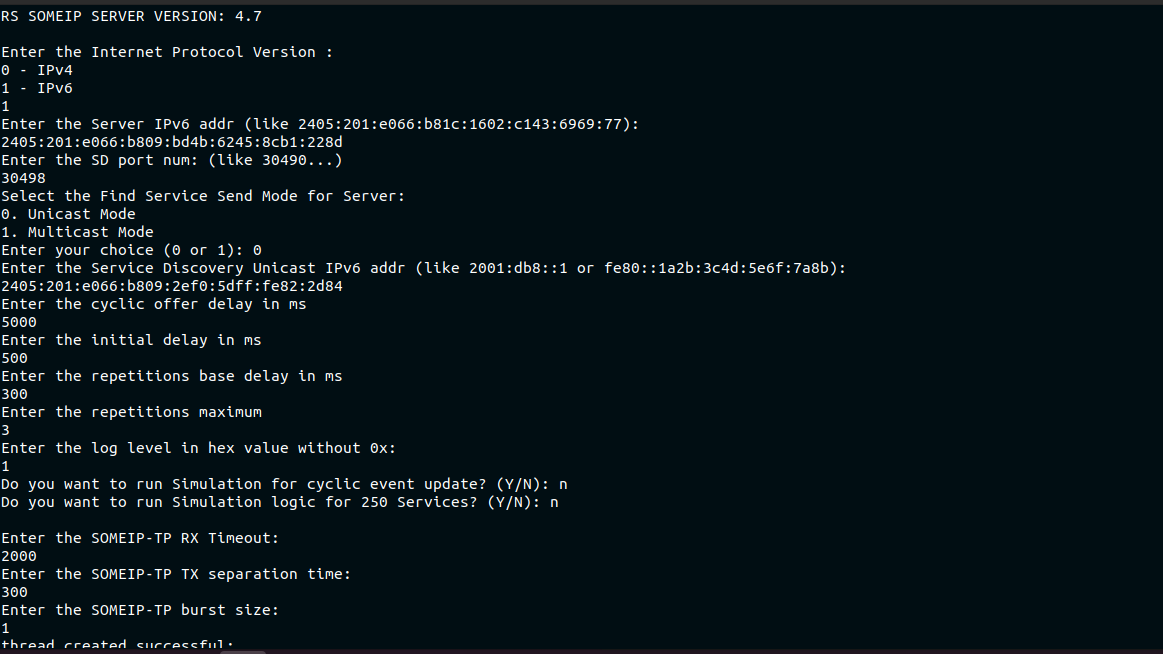

Windows (IPV6)

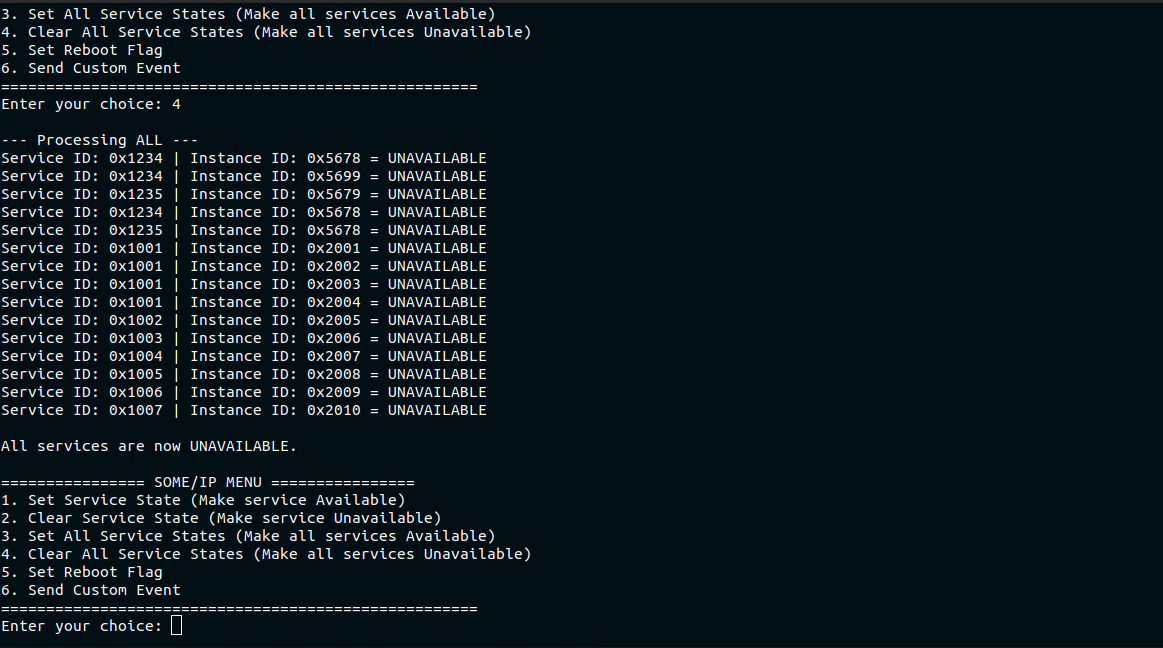

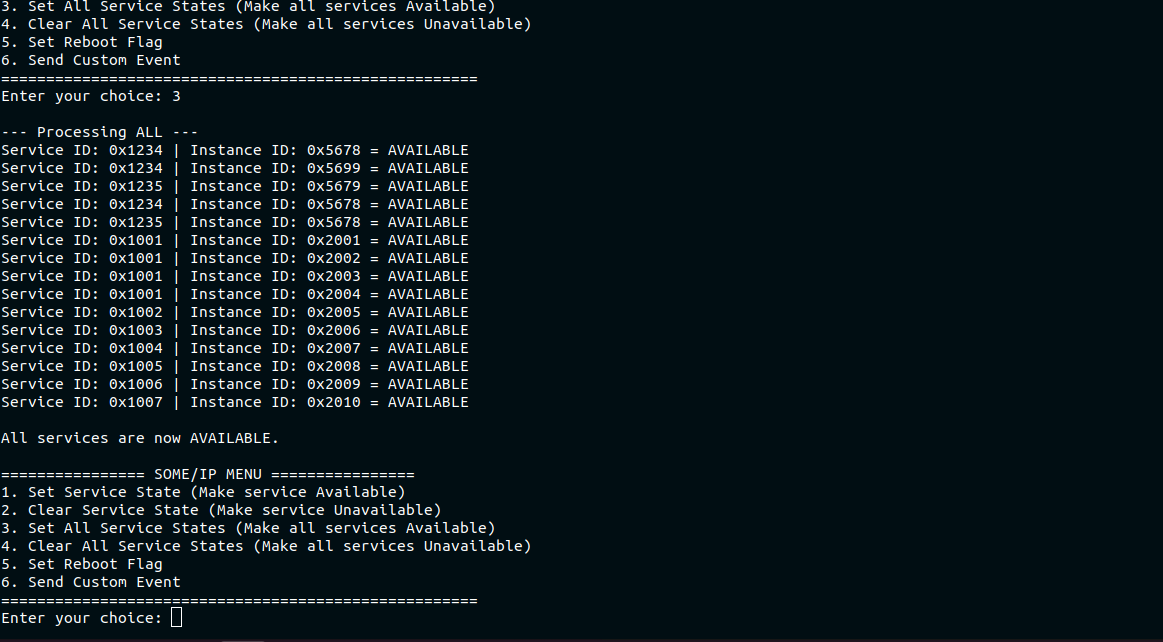

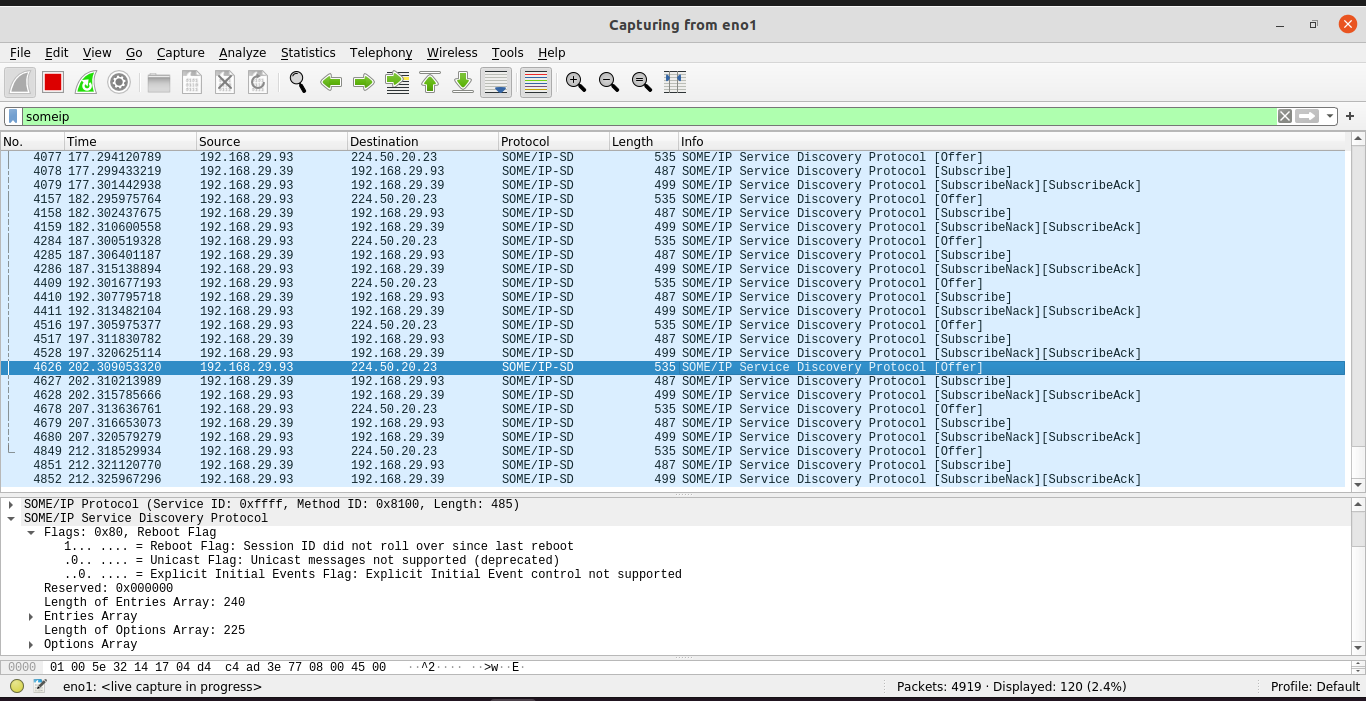

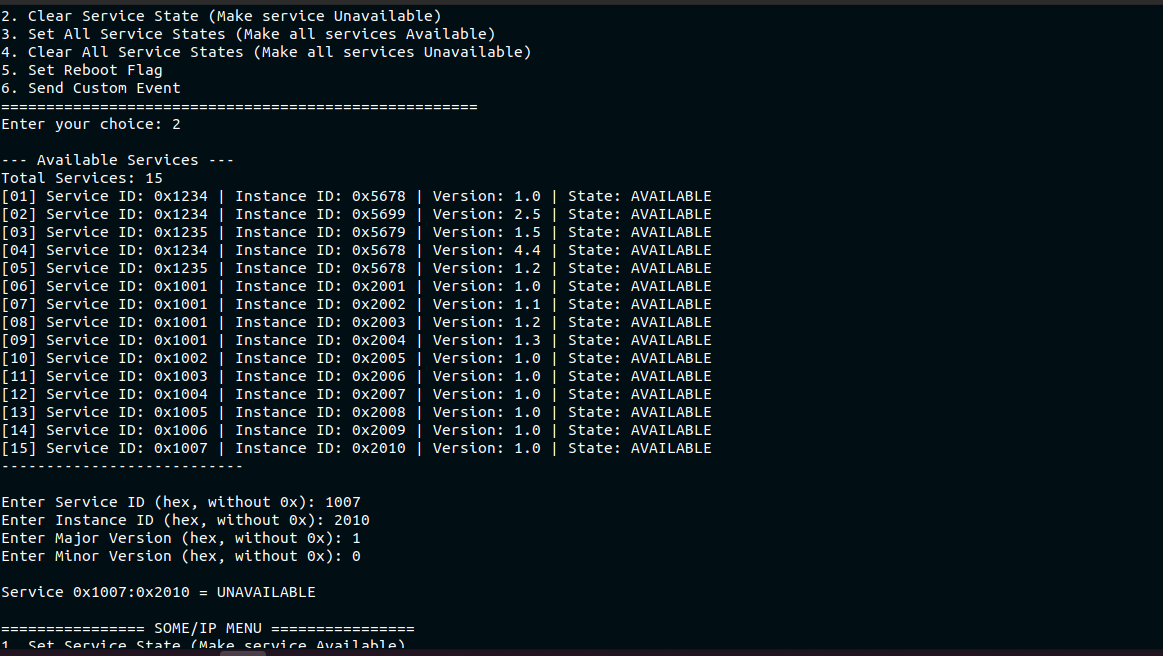

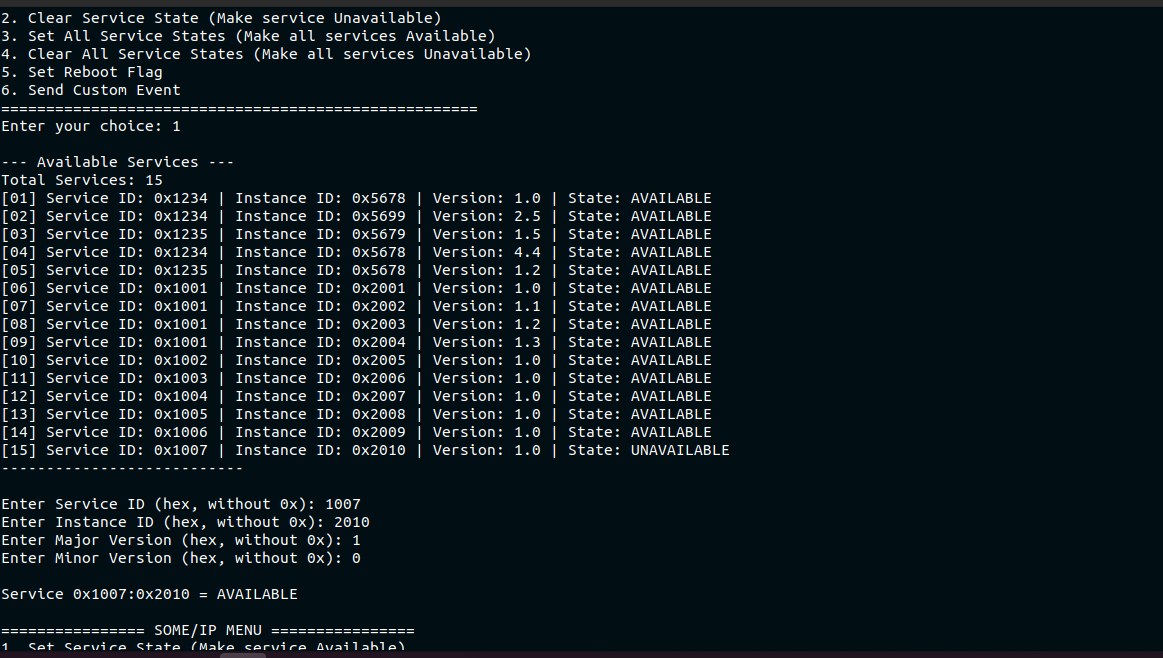

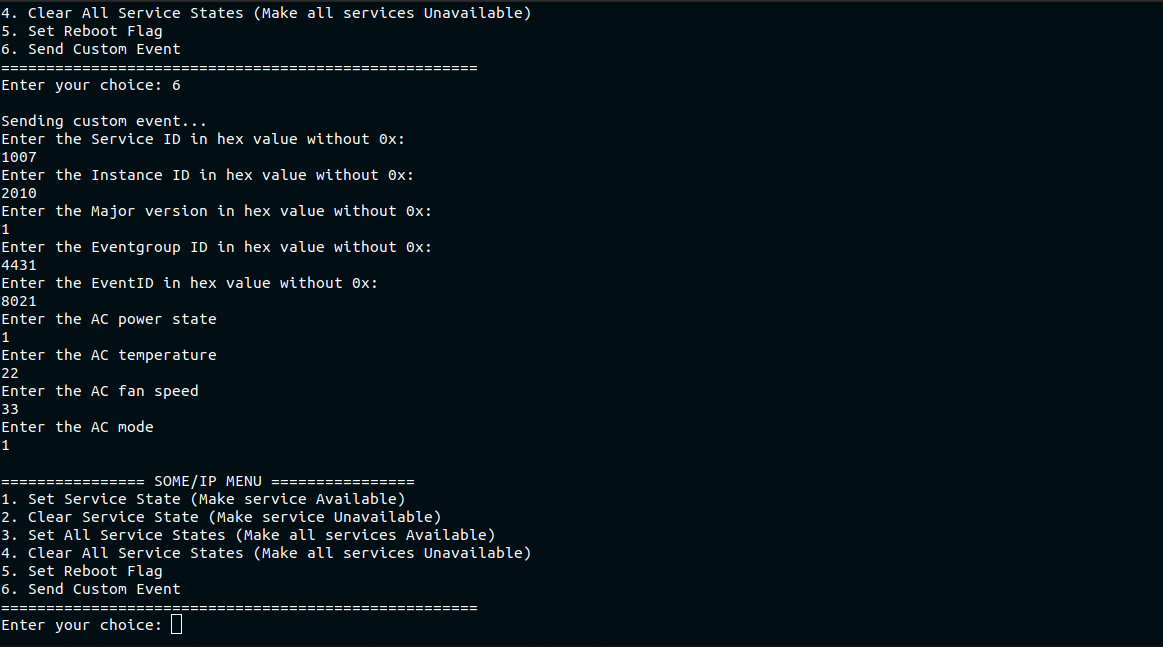

The SOME/IP server initiates the process and waits for the client to connect. After the SOME/IP client starts the process, both the server and client connects and proceed with services.
Refer to the SOME/IP protocol page for more details SOME/IP Protocol.
