CASE STUDY SNAPSHOT
Customer : Leading Indian Medical Device OEM (Ophthalmic Division)Size : 200-1000
Project vertical : Medical Robotics & Industrial Automation
Challenge : Manual handling damage, inconsistent micro-coating, and slow sorting of microscopic surgical blades.
Solution : A 1000mm x 800mm Cartesian Gantry Robot with an automated tool-head changer for nano-coating, vision-integrated inspection, and lot-based packaging.
Services & Products Availed : Full-stack Electro-Mechanical Design, Custom Motion Control Firmware, Windows-based Configuration Suite, ERP Integration
Tools and Technologies :
- Key Hardware: Custom XY Gantry, High-Torque Stepper Motors with Micro-stepping, Nano-liter Dispensing Valves.
- Languages: C++, C#
- Frameworks: .NET Framework
- Others: Real-time Motion Control Kernels, SQL for ERP Sync.
Introduction
A premier Indian medical OEM specializing in ophthalmic solutions faced significant bottlenecks in their surgical blade production line. Specifically, their Crescent Blades, critical for cataract tunnel incisions, required extreme precision in silicone coating and damage-free packaging into varied lot sizes. Manual processes were failing to meet global export quality and volume demands.
Challenge
The manufacturing of ophthalmic blades is a game of microns. The primary challenge was the "Tip-Touch" phenomenon; even a microscopic graze during manual sorting would dull the blade's "Auro-Sharp" edge, rendering it useless for surgery. Furthermore, applying a silicone coating manually led to inconsistent "drag" during incisions. The customer needed to sort these microscopic items into specific commercial lots (3 or 10 units) without any human contact. Additionally, the system had to be robust enough for cleanroom environments while remaining flexible enough to integrate with existing enterprise resource planning (ERP) systems for serial tracking.
Solution
Embien Technologies engineered a comprehensive, "ground-up" XY Cartesian Gantry Robot designed to serve as a unified station for finishing, inspection, and packaging. By moving away from off-the-shelf restricted systems, we provided a custom electro-mechanical architecture tailored to the delicate nature of ophthalmic instruments.

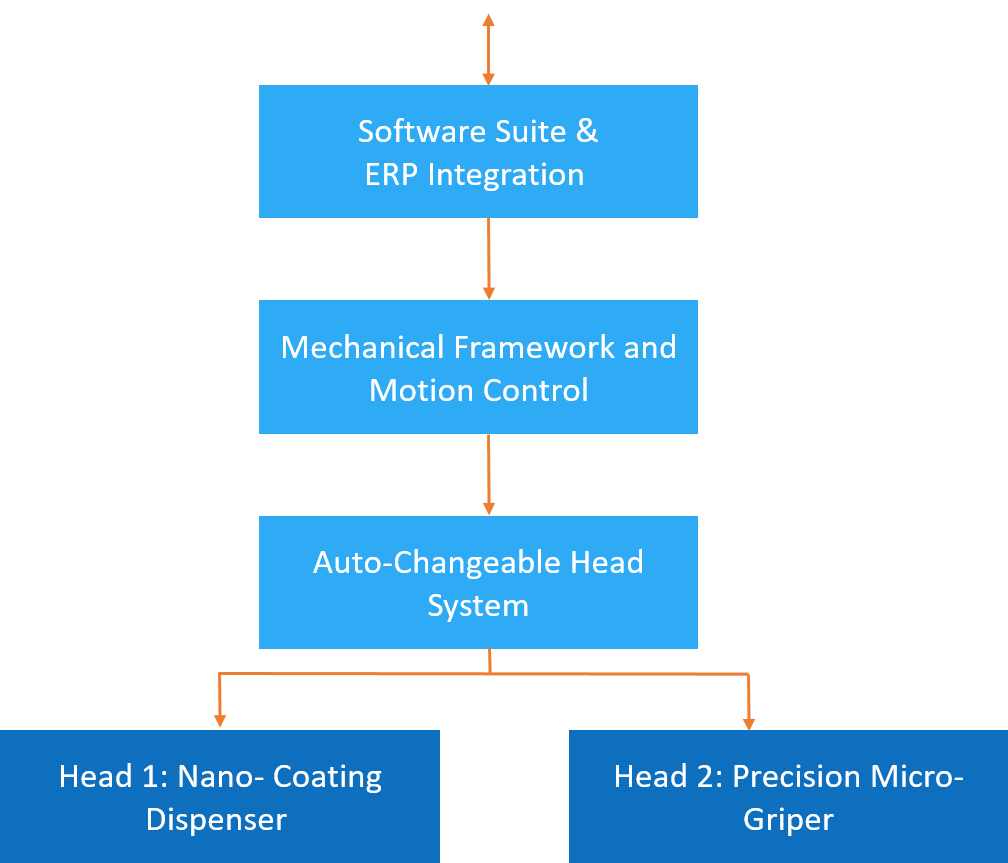

1. The Mechanical Framework & Motion Control
We designed a large-format 80 cm x 100 cm workspace to allow for high-batch processing. To achieve the required surgical precision, the gantry was powered by high-resolution stepper motors utilizing sub-step control algorithms. This ensured that the "jerk" typically associated with belt-driven systems was eliminated, providing the smooth, linear acceleration necessary to handle blades with a mass of only a few milligrams.
2. The Auto-Changeable Head System
The core innovation was the Automated Tool-Changer, allowing the robot to perform multiple industrial roles without manual intervention:
- Head 1 (Nano-Coating Dispenser): This head utilizes a high-precision valve to apply a microscopic, uniform layer of silicone. By controlling the XY velocity at the firmware level, the robot ensures every blade receives the exact same stroke length and volume, guaranteeing a "drag-free" surgical experience.
- Head 2 (Precision Micro-Gripper): We developed a custom vacuum-assisted micro-gripper. Unlike mechanical clamps, this gripper uses regulated suction to pick "Grade A" blades, ensuring zero physical pressure on the sharpened edges.
3. Intelligent Lot-Sorting Logic
The robot’s "brain" was programmed to handle dynamic packaging requirements. The system identifies empty blister packs on the 1-meter bed and automatically switches its sorting pattern. It can fill premium surgical kits (lots of 3) or institutional bulk packs (lots of 10) in the same run. The motion kernel calculates the most efficient path to minimize travel time, contributing to the massive leap in throughput.
4. Software Suite & ERP Integration
Embien developed a dedicated Windows-based Configuration Application. This "Command Center" allows plant managers to:
- Define new tray layouts and blade geometries.
- Monitor real-time production metrics and "Grade A" yields.
- Directly sync production data with the Corporate ERP system, ensuring that every lot packaged is instantly updated in the inventory and quality-tracking databases.
5. Validation and Installation
Understanding the rigors of medical manufacturing, the system underwent exhaustive validation for repeatability and cleanroom compatibility. Our engineers provided on-site installation and calibration, ensuring the robot met the stringent "Zero-Touch" quality mandate required for international surgical exports.
Benefits
Zero-Touch Quality: Eliminated human handling entirely, ensuring 100% of the blades maintain their factory-sharpness until they reach the operating theater.
250% Throughput Boost: The automated sorting and packaging speed allowed the customer to scale up for global export markets without increasing floor space.
Consistent Micro-Coating: Automated dispensing removed the variability of "manual drag," providing surgeons with a more predictable incision tool.
Seamless Traceability: Direct ERP integration ensures every pack of 3 or 10 is digitally logged, reducing manual paperwork and inventory errors.
Architectural Flexibility: The auto-changeable head system allows the customer to add new functionalities (like laser marking) in the future without replacing the robot.
Conclusion
This project stands as a testament to Embien’s ability to solve complex, niche problems in the medical device sector through custom robotics. By combining high-precision electro-mechanical design with intelligent software integration, we transformed a delicate, manual bottleneck into a high-speed, automated success story. Whether it is surgical instruments, defense avionics, or semiconductor handling, Embien’s Cartesian and SCARA solutions provide the "Zero-Touch" reliability modern industry demands.
