The modern automobile is a complex ecosystem of advanced electronic control units (ECUs), sophisticated sensors, and intelligent algorithms, all harmonized to enhance driver safety and convenience. Among the widely adopted Advanced Driver Assistance Systems (ADAS), the Rear Parking Assist System (RPAS) stands out as a critical innovation, significantly reducing low-speed reversing accidents and transforming parking maneuvers into safer, less stressful experiences.

For automotive electronic engineers, software developers, and technology enthusiasts eager to understand the inner workings of the ECU, a deep dive into RPAS design reveals intricate engineering challenges and elegant solutions. This blog post explores the architecture, functionality, and crucial considerations for developing a robust, high-performance Rear Parking Assist System Module.


Introduction to Advanced Rear Parking Assist Systems (RPAS)

A Rear Parking Assist System (RPAS) is an ADAS module that detects obstacles behind the vehicle during reversing and provides real-time visual, audible, or haptic alerts to the driver. Modern RPAS goes far beyond simple beeps, it fuses data from multiple sensors to create a comprehensive rear-view awareness system, often integrated with automatic braking or steering assistance.

At its core sits the RPAS ECU, the electronic control unit that processes raw sensor inputs, runs fusion algorithms, and interfaces with the vehicle’s instrument cluster, infotainment, and chassis systems. Developers targeting RPAS ECU projects must ensure the system delivers sub-100 ms response times while meeting stringent automotive safety standards.


Critical Need for Rear Parking Assist Systems (RPAS) in Vehicle Safety

Parking manoeuvres remain one of the most accident-prone activities for drivers. According to the Insurance Institute for Highway Safety (IIHS), approximately 20% of all reported vehicle crashes occur in parking lots, with backing collisions being a leading cause. These low-speed incidents often result in costly damage, injuries, and tragically fatalities, particularly involving children and pedestrians.

NHTSA data from 2023 highlights the human cost: 7,314 pedestrians were killed in traffic crashes, many during reversing manoeuvres where visibility is severely limited. Rear blind spots, combined with the rising popularity of larger SUVs and trucks, have amplified this risk. Studies show that vehicles equipped with Rear Parking Assist Systems (RPAS) can reduce backing crashes by 30–40%, making RPAS not just a convenience feature but a critical safety technology.


Evolution of Rear Parking Assist Systems: From Beepers to Autonomous Parking

The trajectory of RPAS technology reflects the rapid advancement of automotive electronics:

  • Late 1980s–1990s: Simple ultrasonic (sonar) sensors mounted in the rear bumper. These generated basic beep alerts when obstacles were detected within 1–2 meters.
  • Early 2000s: Multi-sensor arrays (4–8 ultrasonics) with distance visualization on the dashboard. Automatic parking assist emerged, using sensors to guide steering.
  • 2010s: Mandatory rearview cameras in many markets (U.S. regulation effective 2018). Introduction of 360° Around View Monitor (AVM) systems combining cameras and ultrasonics.
  • 2020s–Present: AI-powered sensor fusion. Cameras now use high-definition processing with object classification (pedestrian, pole, vehicle). Integration with radar and LiDAR for true low-speed autonomy. Ultrasonic sensors have evolved for better SNR and longer range, while vision-based systems dominate high-end RPAS.
  • This progression has shifted RPAS from passive warning to active intervention, demanding more powerful RPAS ECU architectures.


Rear Parking Assist System (RPAS): Operational Functionality

At its core, the functionality of an RPAS follows a cyclical workflow of sensing, processing, decision-making, and alerting:

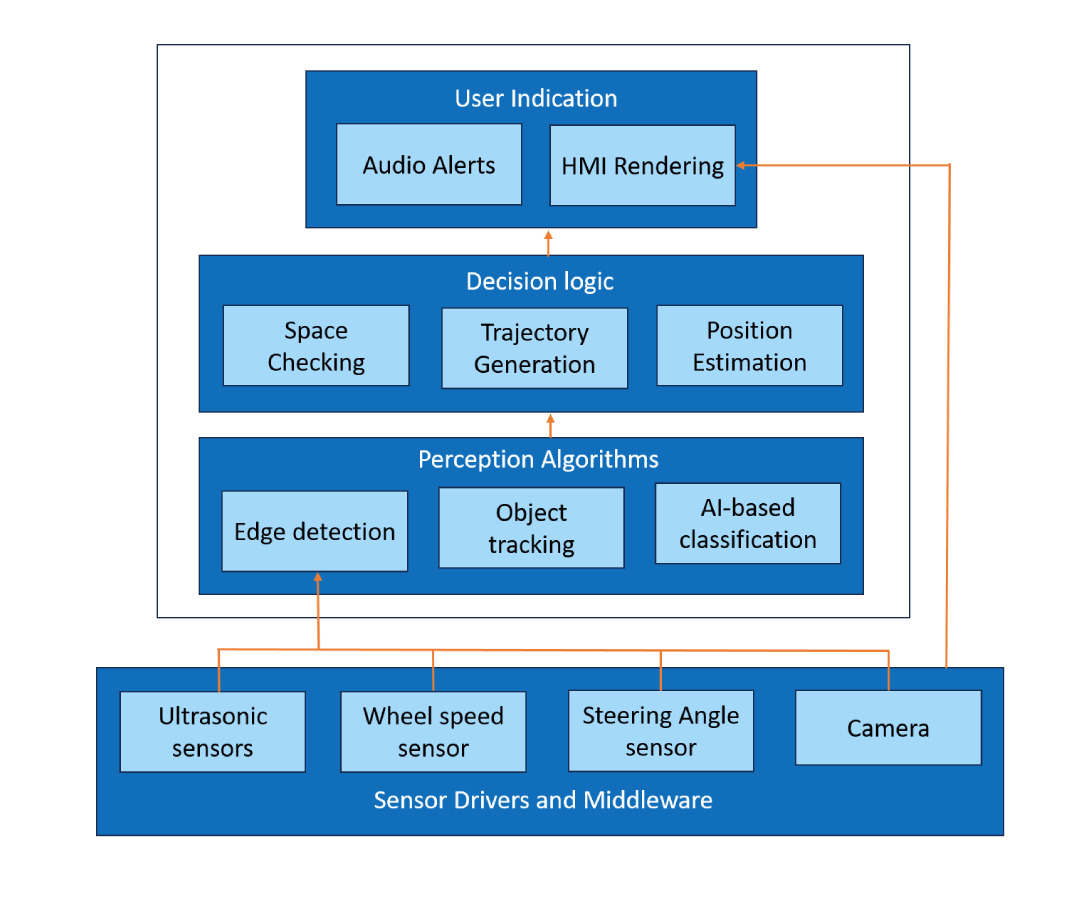

Edge AI Ecosystem​
  1. Sensing: When reverse gear is engaged, the RPAS ECU activates the sensors. Ultrasonic sensors are the workhorse, emitting ultrasonic pulses and detecting their echoes. More advanced systems can use automotive-grade radar or vision sensors (cameras).
  2. Distance Calculation: The ECU accurately measures the time difference between emission and reception of signals. Using the speed of sound (for ultrasonic) or light (for radar), it computes the precise distance to any detected object. Camera-based systems utilize image processing and geometric algorithms (like monocular or stereoscopic vision).
  3. Data Processing and Object Logic: The microcontroller processes raw sensor data, distinguishing genuine obstacles from noise or environmental interference. Multiple sensors provide spatial awareness, allowing the ECU to triangulate obstacle location.
  4. Decision Making & Threat Assessment: The system compares calculated distances against pre-defined thresholds. It assesses the severity of potential collision based on object location, distance, and the vehicle's speed and trajectory.
  5. Driver HMI Alerting: The ECU generates control signals for the Human-Machine Interface (HMI). This includes:
  • Audible Alerts: Increasing frequency of "beeps" as the obstacle draws closer, typically culminating in a continuous tone at distances less than 30 cm.
  • Visual Displays: Simple LED strips, dedicated dashboard segments, or complex overlays on rearview camera feeds showing colored distance zones and specific obstacle locations.
  • Haptic Feedback: Vibrations in the seat or steering wheel.

Key Components and Overview of Rear Parking Assist System in Vehicles

A typical Rear Parking Assist System (RPAS) comprises:

  • Ultrasonic Sensors: 4–6 transducers in the rear bumper for precise distance measurement (up to 5 m).
  • Rear Camera: High-resolution CMOS sensor (often 1–2 MP) with wide-angle lens and night-vision capability.
  • Optional Front/Side Sensors and 360° Cameras: For full surround-view RPAS.
  • Indicators and HMI: Audible buzzers, visual overlays on the infotainment screen, dynamic guidelines, and brake intervention.
  • RPAS ECU: The central brain processing all inputs.

These components communicate over automotive buses, with the ECU orchestrating everything from raw data acquisition to driver alerts.


Core Functionality of Rear Parking Assist System (RPAS)

When the vehicle shifts into reverse, the RPAS ECU activates:

  1. Sensor data acquisition (ultrasonic echo timing + camera frames).
  2. Obstacle detection and distance calculation.
  3. Sensor fusion to create a unified occupancy grid.
  4. Generation of visual overlays (dynamic guidelines, object highlighting).
  5. Audible/haptic warnings escalating with proximity.
  6. Optional automatic emergency braking (AEB) if collision risk is detected.

Advanced RPAS modules add object classification (e.g., child vs. shopping cart) using CNN-based vision processing and integrate with the vehicle’s electronic stability control for semi-autonomous parking.


Hardware Architecture of Rear Parking Assist System (RPAS) ECU

The RPAS ECU is a compact, automotive-grade module typically built around a powerful microcontroller or SoC. Key components include:

MCU/SoC: Multi-core processors (e.g., Renesas RH850, NXP S32K/S32G, or TI Jacinto) handling real-time tasks. Vision-heavy systems often use dedicated image signal processors (ISP) or hardware accelerators for CNN inference.

Sensor Interfaces:

  • Ultrasonic drivers (pulse generation and echo capture).
  • Camera interfaces (MIPI CSI-2, GMSL, or Analog High-Definition Link – AHL for cost-effective high-res video).

Communication Interfaces: CAN-FD or LIN for vehicle network integration, Ethernet for high-bandwidth camera data, and optional FlexRay in premium setups.

Power Management: Wide-input DC-DC converters with automotive transient protection.

Memory: External DDR for frame buffering, Flash for firmware, and EEPROM for calibration data.

Output Drivers: For buzzers, relays (brake intervention), and display interfaces.

The architecture must withstand –40°C to +85°C, high vibration, and EMC/EMI requirements. Developers often use functional safety islands (lock-step cores) to achieve ISO 26262 ASIL-B compliance in the RPAS ECU.


Software Architecture of RPAS Module: Compliance and Real-Time Demands

The software stack in a Rear Parking Assist System (RPAS) is layered for reliability and performance:

  • RTOS or AUTOSAR OS: Ensures deterministic scheduling with response times under 50–100 ms end-to-end.
  • Sensor Drivers and Middleware: Low-level drivers for ultrasonics and camera frame grabbing; sensor fusion middleware (Kalman filters or occupancy grid mapping).
  • Perception Algorithms: Edge detection, object tracking, and AI-based classification (often running on GPU/NN accelerators).
  • Application Layer: Decision logic, HMI rendering, and diagnostic services (UDS over CAN).
  • Safety and Diagnostics: ISO 26262-compliant safety mechanisms (watchdogs, redundancy checks, fault injection testing).

Regulatory compliance is non-negotiable: FMVSS 111 (rear visibility), ISO 26262 for functional safety, and ASPICE for process quality. Developers must implement rigorous verification, including Hardware-in-the-Loop (HiL) testing with simulated environments like CARLA to validate corner cases.


Major Design Challenges in Rear Parking Assist System (RPAS) Development

Building a production-ready RPAS ECU presents several technical hurdles:

  • Latency vs. Accuracy Trade-off: Achieving <100 ms processing while handling noisy sensor data in rain, snow, or low light.
  • Sensor Fusion Complexity: Merging ultrasonic distance data with vision-based semantics under varying conditions.
  • Functional Safety and Verification: Proving ASIL compliance across millions of edge cases requires extensive simulation and fault injection.
  • Functional Safety and Verification: Proving ASIL compliance across millions of edge cases requires extensive simulation and fault injection.
  • Cost and Scalability: Balancing high-performance SoCs with BOM constraints for mass-market vehicles.
  • Environmental Robustness: Thermal management, EMI shielding, and calibration stability over vehicle lifetime.
  • Integration with Broader ADAS: Seamless handover to 360° systems or Level-2 autonomy features.
  • These challenges can be addressed these through model-based design, early HiL validation, and optimized partitioning between MCU and accelerators.


    Conclusion

    Developing a reliable, efficient, and compliant Rear Parking Assist System Module is a formidable engineering challenge that demands deep technical insight, rigorous adherence to safety standards, and multidisciplinary expertise. As ADAS continues to advance, the complexity of these systems will grow, encompassing advanced sensor fusion, AI-driven object recognition, and full autonomy.

    Embien Technologies, with its proven track record as an automotive engineering service provider, stands ready to assist in navigating these complexities. Our extensive services portfolio covers every stage of the development lifecycle for automotive Rear Parking Assist Systems. Contact Embien Technologies today to discuss your Rear Parking Assist System (RPAS) development or any other ECU requirements.
