In the ever-evolving landscape of automotive technology, Remote Keyless Entry Systems have become an integral part of modern vehicle security. These innovative systems provide a convenient and secure way for drivers to access and operate their vehicles without the need for traditional metal keys. As we delve into the world of remote keyless entry systems, we will explore their functionalities, hardware architecture, data flow and design challenges.
These systems not only enhance convenience but also play a crucial role in safeguarding our vehicles from unauthorized access. By understanding the hardware architecture of the RKE and the operation of remote keyless entry systems, we can appreciate the engineering marvels that have made our daily commutes more secure and hassle-free.
A remote keyless entry system is an electronic security system that allows vehicle owners to lock, unlock, and even start their vehicles without the need for a physical key. Instead, Remote Keyless Entry Systems rely on a small, portable device known as a key fob or a remote control.
The key fob communicates with the vehicle's onboard computer system using radio frequency (RF) signals. When the appropriate button on the key fob is pressed, it transmits a coded signal to the vehicle's receiver, which then authenticates the signal and performs the requested action, such as locking or unlocking the doors or activating the ignition system. No longer do we need to fumble with traditional metal keys or worry about misplacing them.
Remote Keyless Entry Systems offer a wide range of functionalities that enhance both convenience and security. Here are some of the most common features:
The primary function of Remote Keyless Entry Systems is to allow drivers to lock and unlock their vehicle's doors with the press of a button on the key fob, eliminating the need to physically insert a key into the door lock.
Many remote keyless entry systems include a dedicated button on the key fob that allows drivers to remotely release the trunk or hatch of their vehicle.
When activated, this function triggers the vehicle's horn and flashes the exterior lights, drawing attention to the vehicle and potentially deterring potential threats.
Some RKE systems offer a remote start feature, allowing drivers to start their vehicle's engine from a distance. This feature is particularly beneficial in extreme weather conditions, as it enables the vehicle's climate control system to warm or cool the interior before the driver enters.

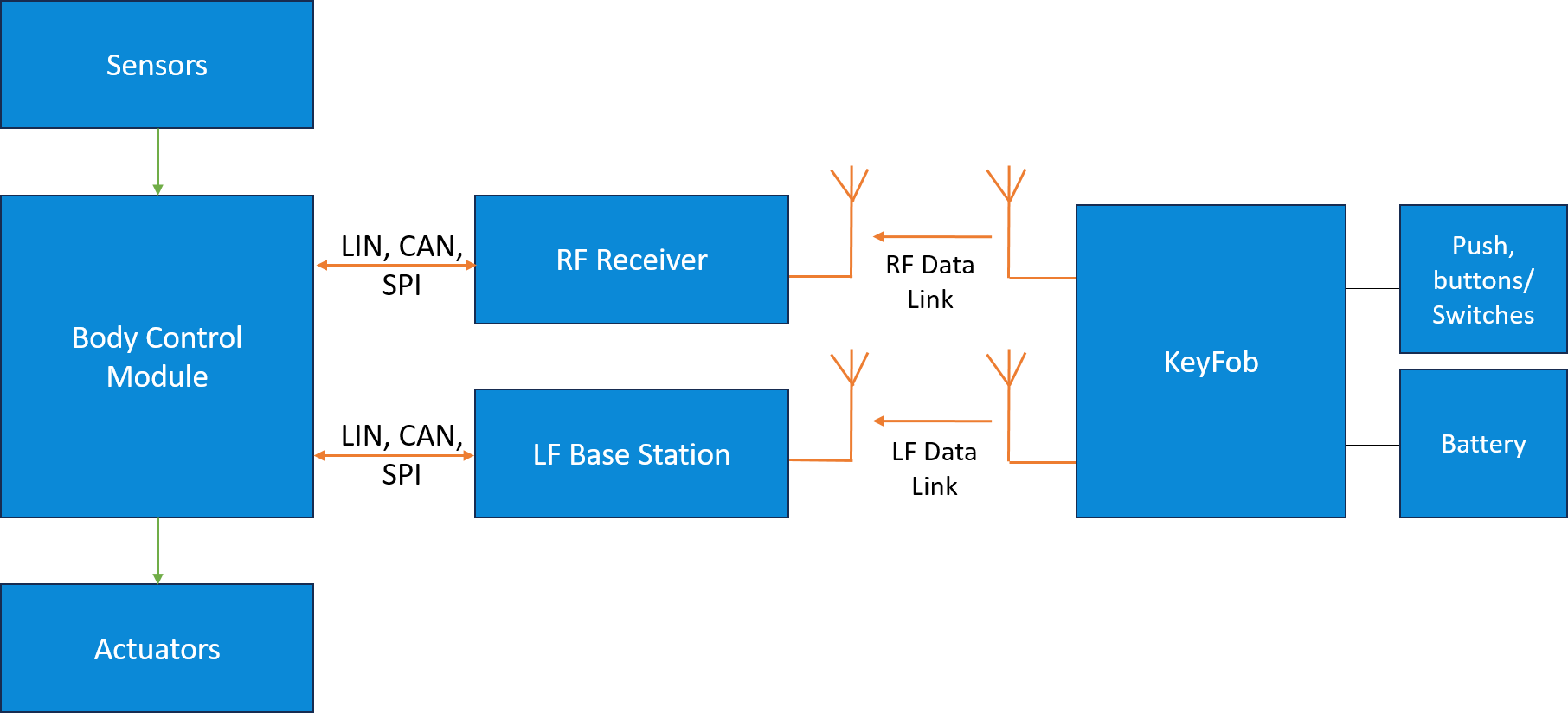

As captured in the diagram below, the hardware architecture of a remote keyless entry system consists of several key components that work together to ensure seamless operation. Understanding the hardware architecture of the RKE is essential for engineers designing secure, reliable access systems for modern vehicles.
Remote Keyless Entry System
Let's explore the main components of the hardware architecture of the RKE:
The key fob is the handheld device that transmits coded RF signals to the vehicle's receiver. It typically contains buttons for locking, unlocking, trunk release, and other functions. The key fob is powered by a small battery and incorporates a radio transmitter and a microcontroller for signal encoding. Modern designs increasingly support a mobile based key fob approach, where a smartphone replaces or supplements the physical fob for even greater convenience.
The receiver module is installed within the vehicle and is responsible for receiving the coded RF signals (300 MHz) from the key fob. It consists of an antenna and a radio receiver circuit that demodulates the incoming signal and passes it to the vehicle's body control module (BCM) or central electronic control unit (ECU), typically over internal SPI bus. This element of the hardware architecture of the RKE must be carefully shielded to minimize susceptibility to relay attacks.
The BCM or ECU acts as the brain of Remote Keyless Entry Systems. The BCM or ECU authenticates the signal, decodes the requested action, and sends commands to the appropriate vehicle systems.
Actuators are the physical components that carry out the requested actions, such as locking or unlocking the doors, releasing the trunk, or activating the ignition system. Sensors, on the other hand, provide feedback to the BCM or ECU about the status of various vehicle systems, ensuring proper operation and security.
While the RKE controls physical access, the Key fob also has Immobilizer interface through which the engine can be authorized to start. It employs an LF communication at about 125 kHz frequency.
The operation of remote keyless entry systems follows a specific sequence to ensure secure and reliable access control. The data flow in Remote Keyless Entry Systems is designed to prevent interception and replay attacks at every stage. Here's a simplified overview of the operation of remote keyless entry systems:
When a button on the key fob is pressed, it generates a coded RF signal that contains information about the requested action (e.g., lock, unlock, trunk release) and a unique identification code associated with the specific key fob.
The receiver module, located within the vehicle, receives the RF signal from the key fob through its antenna.
The receiver module demodulates the received RF signal, converting it into a digital data stream that can be processed by the BCM or ECU.
The BCM or ECU authenticates the received signal by verifying the unique identification code associated with the key fob. This step ensures that only authorized key fobs can control the vehicle's systems, preventing unauthorized access. The operation of remote keyless entry systems depends entirely on the integrity of this authentication step.
If the signal is authenticated, the BCM or ECU interprets the requested action encoded in the signal (e.g., lock, unlock, trunk release).
Based on the interpreted command, the BCM or ECU sends control signals to the appropriate actuators or vehicle systems to carry out the requested action.
To address security concerns related to signal interception and code-grabbing attacks, rolling code technology was introduced. This technology ensures that each signal transmitted by the key fob is unique, making it more difficult for potential attackers to gain unauthorized access.
A mobile based key fob replaces the discrete RF transmitter with a Bluetooth Low Energy (BLE) or Ultra-Wideband (UWB) interface on the driver's smartphone. The operation of remote keyless entry systems in a mobile based key fob scenario retains the same authentication logic but adds device-binding, certificate-based key provisioning, and remote revocation capabilities. Secure key fob development for smartphone-centric architectures must address key rotation, PKI integration, and fallback mechanisms for environments with poor cellular connectivity.
Secure key fob development demands rigorous threat modeling to counter relay station attacks, signal amplification attacks, and firmware extraction attempts. Dedicated hardware security elements, challenge-response protocols, and tamper-evident packaging are standard requirements. Our edge computing services provide the low-latency processing infrastructure needed to run real-time proximity detection and anti-relay algorithms within Remote Keyless Entry Systems. For end-to-end protection, our automotive cybersecurity services cover TARA, penetration testing, and ISO 21434 compliance support for secure key fob development programs.
While Remote Keyless Entry Systems offer numerous benefits, their design and implementation present several challenges that must be addressed.
These systems must be designed with robust encryption algorithms and authentication mechanisms to prevent unauthorized access or signal interception as well as relay station attacks etc. Secure key fob development and careful design of the hardware architecture of the RKE are the first lines of defense.
RF signals can be susceptible to interference from various sources, such as other electronic devices, building structures, or environmental factors.
Being battery-powered devices, designers must strike a balance between functionality, power consumption, and user convenience.
Manufacturers must balance the features and capabilities of these systems with cost-effectiveness and manufacturability considerations.
The design of key fobs — including mobile based key fob implementations — and the user interface of remote keyless entry systems must prioritize user experience and ergonomics.
They must comply with various regulatory standards and guidelines related to radio frequency emissions, safety, and security across different regions and markets.
Remote Keyless Entry Systems have become an indispensable component of modern vehicle security, offering a perfect blend of convenience and protection. As we navigate the ever-changing landscape of automotive technology, these systems continue to evolve, adapting to new challenges and embracing innovative solutions.
Many modern RKE systems have evolved to include keyless access and push-button start capabilities. With these features, drivers can unlock and start their vehicles without ever having to remove the key fob from their pocket or purse, further enhancing convenience and security. The ongoing evolution of the hardware architecture of the RKE and the operation of remote keyless entry systems will continue to shape how drivers interact with their vehicles.
